500mm High  Revolves

500mm High  Revolves

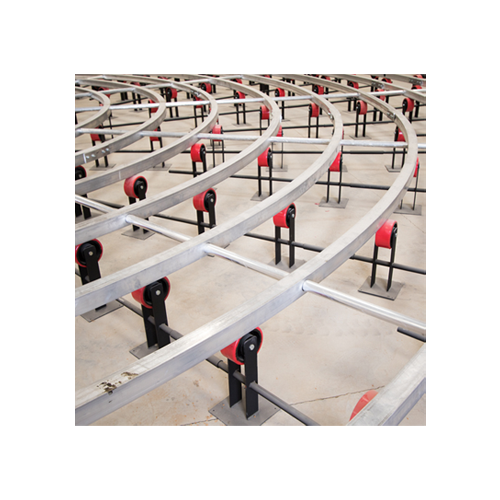

A range of varied diameter revolves @ 500mm high

Diameter: 6.6m, 11m, 15.4m, 19.8m, 24.2m, 30m – Other custom sizes can be arranged at an additional cost

Weight loading: Total distributed load for 30m size is 55000kg; Point load of 300kg/m2; Higher UDL’s and higher point loadings of around 1000kg/m2 achieved by double skinning

Rotation: Smaller sizes unloaded can be driven to 0.8 revolutions per minute (RPM); Fully loaded or at 30m are capable of 0.4RPM
