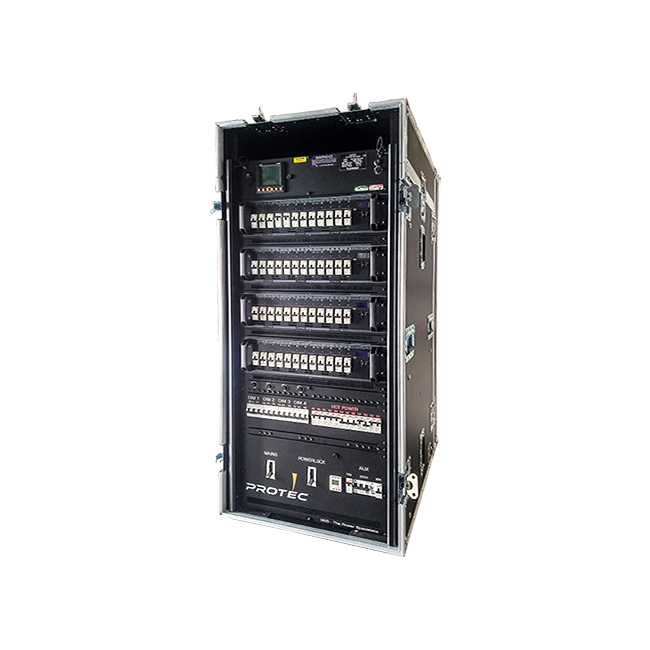

SES 48 way dimmer rack – TourDim 60
Incoming Powerlock overall protection via 250A 4P MCCB. Output powerlock protected by 250A 4P MCCB fitted with shunt trip operated by variable time and sensitivity earth leakage relay with key switch disable. Overall multimeter, USB charger, dedicated input DMX connector. Racklights front, back, and top, switchable blue/off/white. Aux 32A/3 and 16A/1 each with RCBO. 12 x Hard Power channels each with 16A 30mA RCBO feeding 12 x Wieland Patch connector. 4 x FLX Units each with 12 x 3.7kW channels able to operate as full spec dimmer/dmx operated relay switched hot power/permanent hard power. Each channel with 16A 30mA RCBO feeding 2 x Wieland patch female connectors. 16 x Soca female and 4 x 16A/1 out fed from 96 Wieland patch male connectors. Space for 1U Split 7 DMX splitter or ArtNet node.
